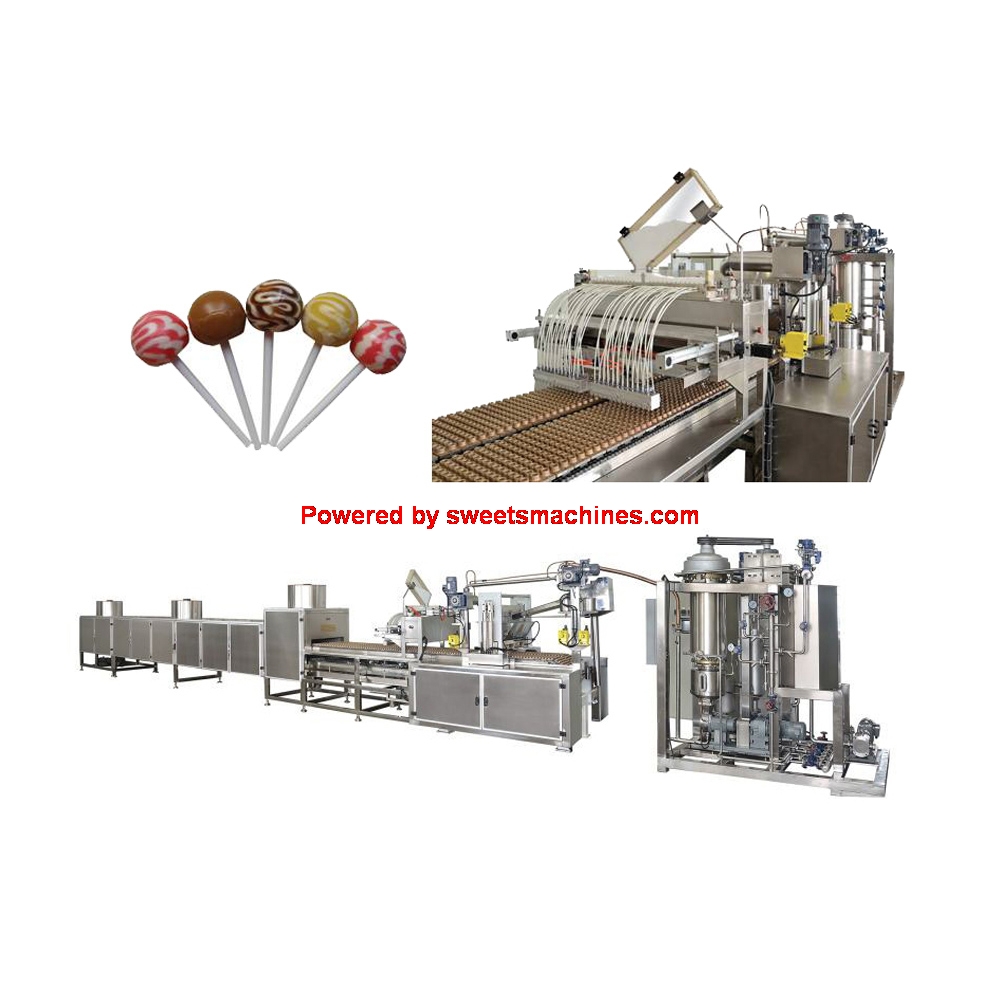

SWM-LD LOLLIPOP DEPOSITING LINE

SWM Lollipop Depositing Line can produce a wide variety of different lollipop types, single-color, striped and layered products are possible.

Detailed description

Specification

Model	SWM-LD series
Production capacity	30000pcs/h
Depositing speed	25-35stroke/min
Steam consumption	450kg/h
Steam pressure	P﹤0.7Mpa
Compressed air consumption	0.3m³/min
Compressed air pressure	P=0.4-0.6Mpa
Water consumption	2200L/h
Power	30-45kw
Sizes of machine	15×2×2.7m
Weight of machine	7000kg

Application

The SWM-LD series lollipop depositing line is specially designed to produce ball or flat lollipops, such as single-color, 2-color, striped lollipops, layered lollipops, etc. The line offers high output, good quality of products, automatic operation and high levels of production efficiency. The line is continuously depositing syrup from Microfilm Cooker at final moisture into metal moulds. This makes candies have smooth surface finish and good taste. Sticks are placed accurately by an automatic stick putting device or inserted straightly by an automatic stick insertion device.

Normally, we only recommend our lollipop depositing machine with two rows of moulds.
