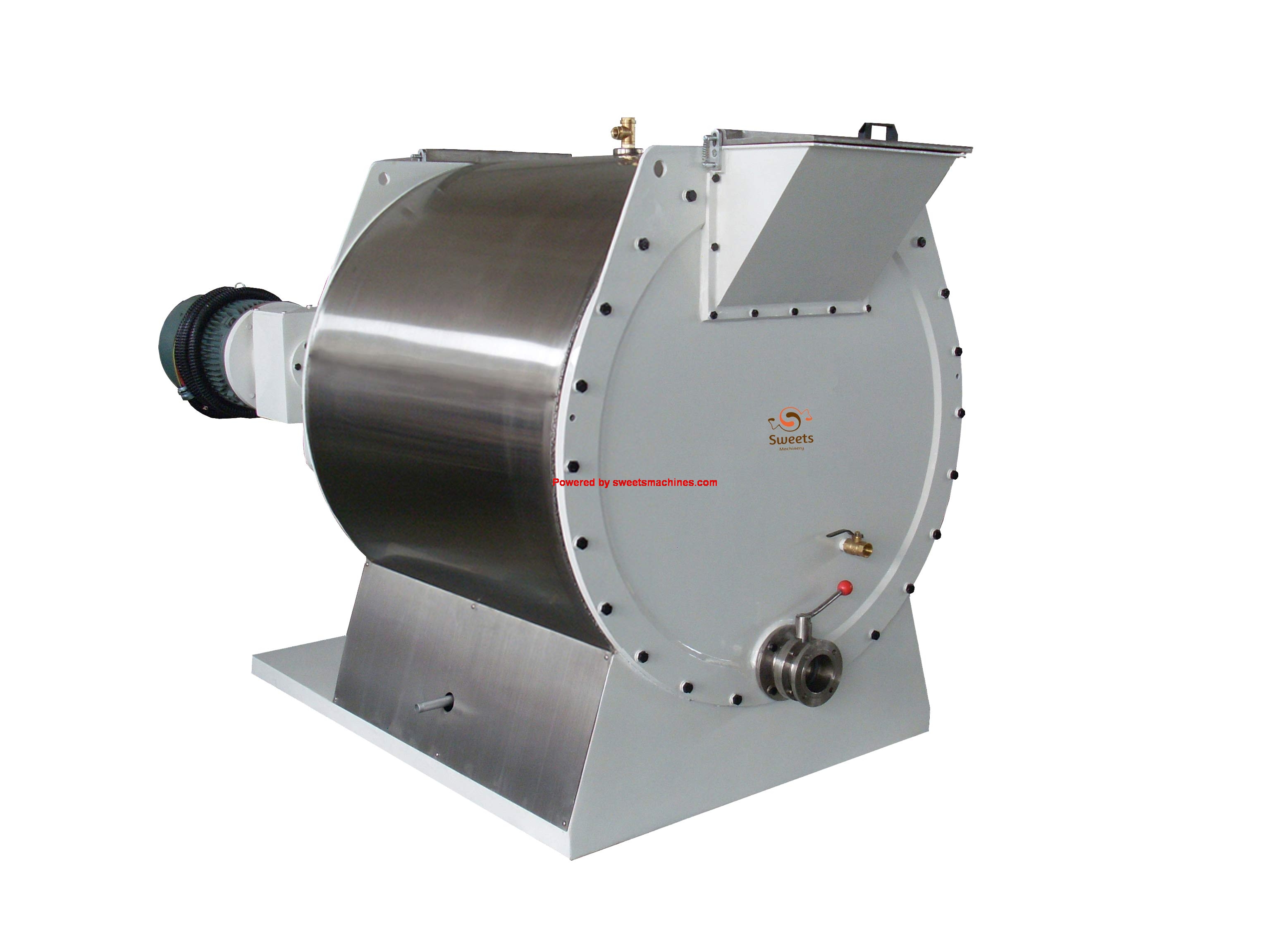

SWM-JMJ CHOCOLATE CONCHE/ REFINER

This kind chocolate grinding machine is suitable for chocolate making factory.

Detailed description

Specification

Model	SWM-JMJ40	SWM-JMJ500A	SWM-JMJ1000A	SWM-JMJ2000A
Capacity(L)	40	500	1000	2000
Fineness(micron)	25-20	25-20	25-20	25-20
Processing time(h)	7-9	12-18	14-20	18-22
Power of main motor (kw)	2.2	15	22	37
Heating power(kw)	2	7.5	7.5	9
Weight of machine (kg)	360	2800	3500	5300
Sizes of machine(mm)	1100×800×1100	2500×1080×1370	2780×1330×1800	3320×2000×1950

Application

The SWM-JMJ series Chocolate Conche/Refiner is the main machine in chocolate production, it is widely used for refining and conching chocolate mass/paste, as well as refining peanut butter or other liquor/pastes. The average fineness can achieve 25-20 microns. The SWM-JMJ40 model is with manual blade tightening, which usually for small batch chocolate production or sample making in chocolate factory. Other models in this series are suitable for medium and big size factories with electric blade tightening.

It can also work with chocolate ball mill for saving the grinding time.
