Detailed description

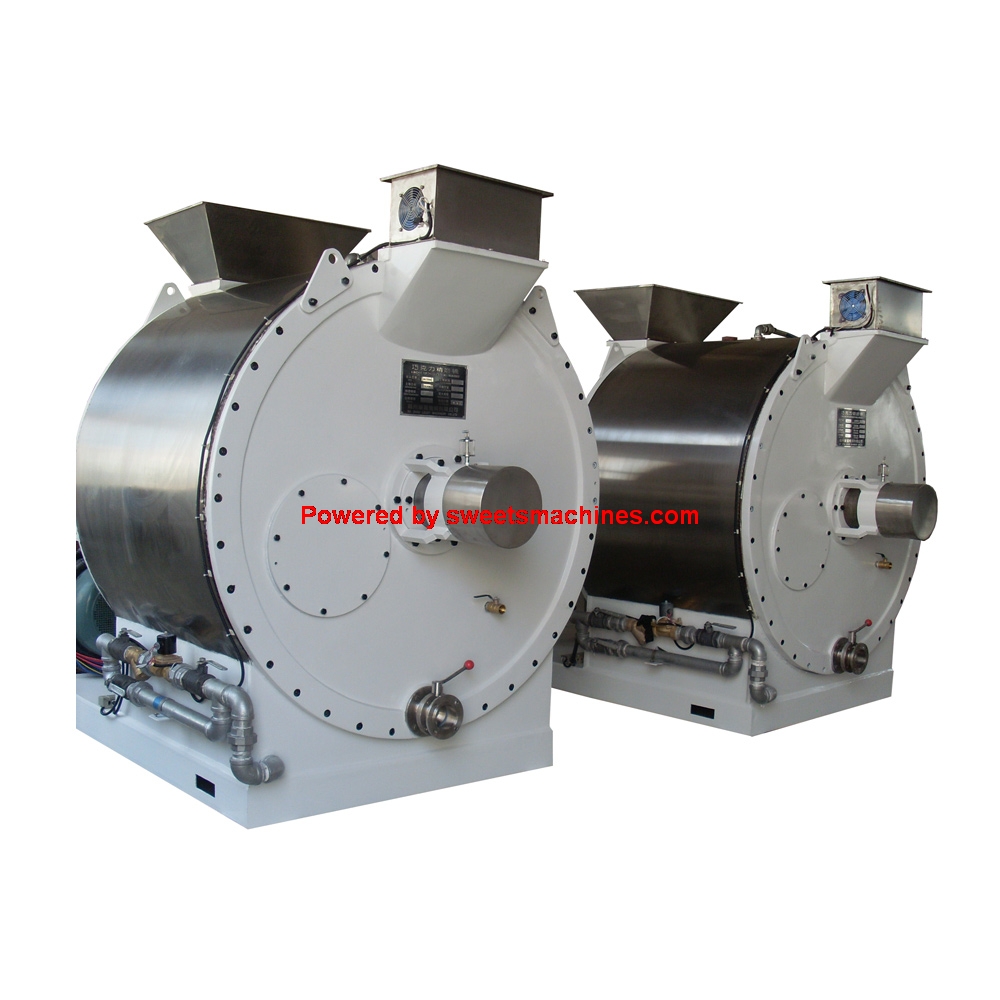

Chocolate conching machine is the main machine in chocolate production and can be used for conching and refining chocolate mass.
We have five models can be chosen: 40L, 500L, 1000L, 2000L and 3000L.
Except our 40L craft chocolate conche refiner, the pressure between lining bars and scrapers are all adjusted by small motor.
After conching and refining, the fineness of chocolate paste could reach 20~25um.
| Model | Production Volume（L） | Processing Time（h） | Fineness（um） | Main Drive Power（kw） | Heating Powder（kw） | Weight（kg） | Dimension（mm） |
| JMJ40 | 40 | 8-10 | 20-25 | 2.2 | 2 | 360 | 1100×800×1100 |
| JMJ500A | 500 | 12-18 | 20-25 | 15 | 7.5 | 2800 |
2500×1080×1370 |
| JMJ1000A | 1000 | 14-20 | 20-25 | 22 | 7.5 | 3500 |
2780×1330×1800 |
| JMJ2000C | 2000 | 18-22 | 20-25 | 37 | 9 | 5300 |
3320×2000×1950 |
| JMJ3000C | 3000 | 18-22 | 20-25 | 55 | 9 | 8500 |
4200×2000×1950 |
