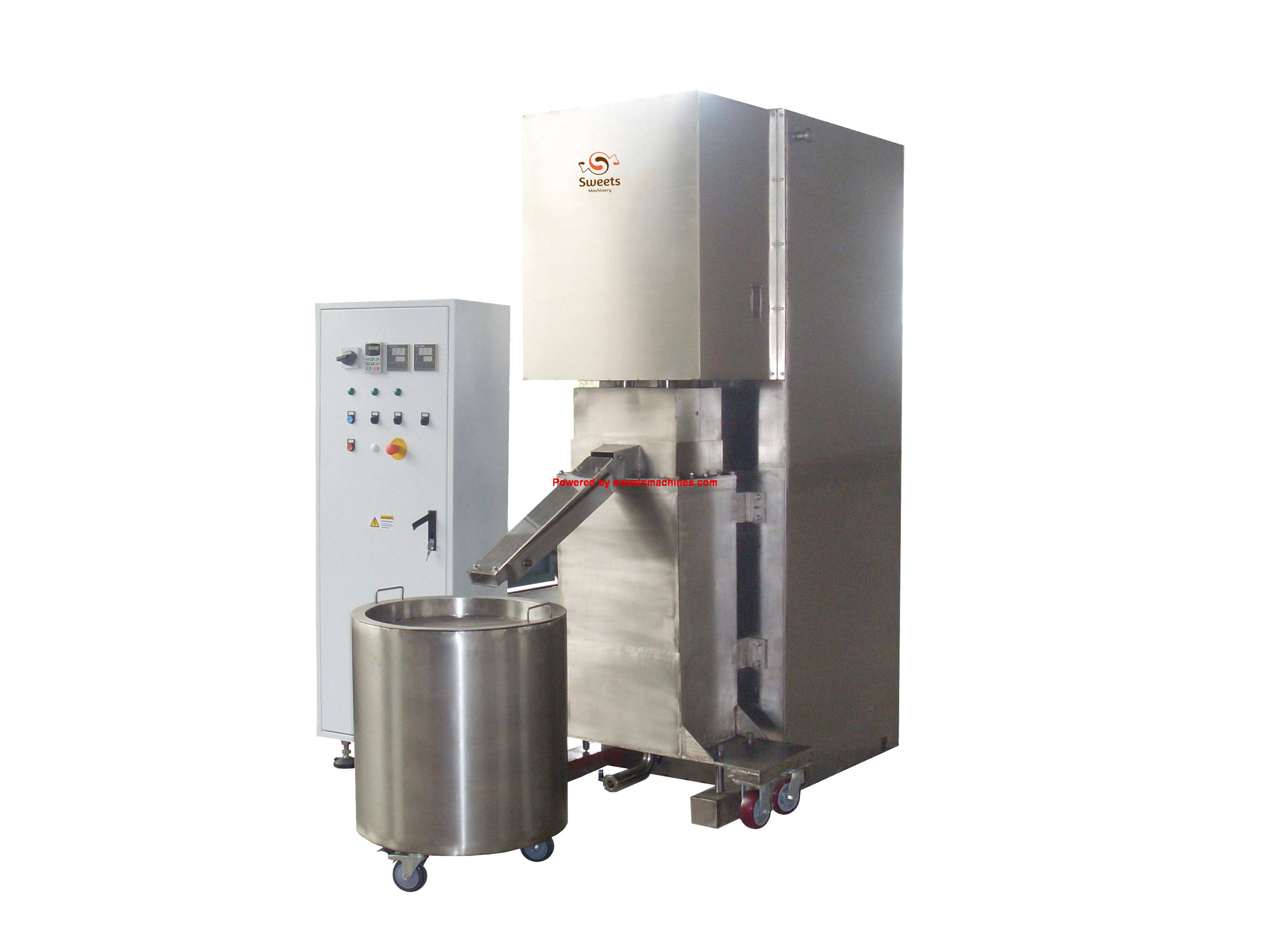

SWM-QMJ CHOCOLATE BALL MILL

Detailed description

Specification

Model	SWM-QMJ250	SWM-QMJ500	SWM-QMJ1000
Capacity(kg/h)	200-250	400-500	750-1000
Fineness(um)	30-25	30-25	30-25
Main drive power(kw)	15	15×2	55
Ball material	bearing steel	bearing steel	bearing steel
Ball weight(kg)	180	360	1400
Weight of machine (kg)	2000	3800	5000
Sizes of machine(mm)	1100×1250×2150	2200×1200×2400	2400×1500×2600

Application

The SWM-QMJ series Chocolate Ball Mill is used for ball grinding and milling chocolate pastes. Through collision and friction between the steel balls and the chocolate pastes inside the machine cylinder, the chocolate pastes will continuously improve its fineness till it reaches the required rate. This machine has advantages of high production output, low energy cost, even fineness and etc.. This machine should be used along with chocolate refiner and conche or premixer, chocolate storage tank and chocolate transfer pump to achieve continuous production and improve production efficiency. It has automatic temperature control.
