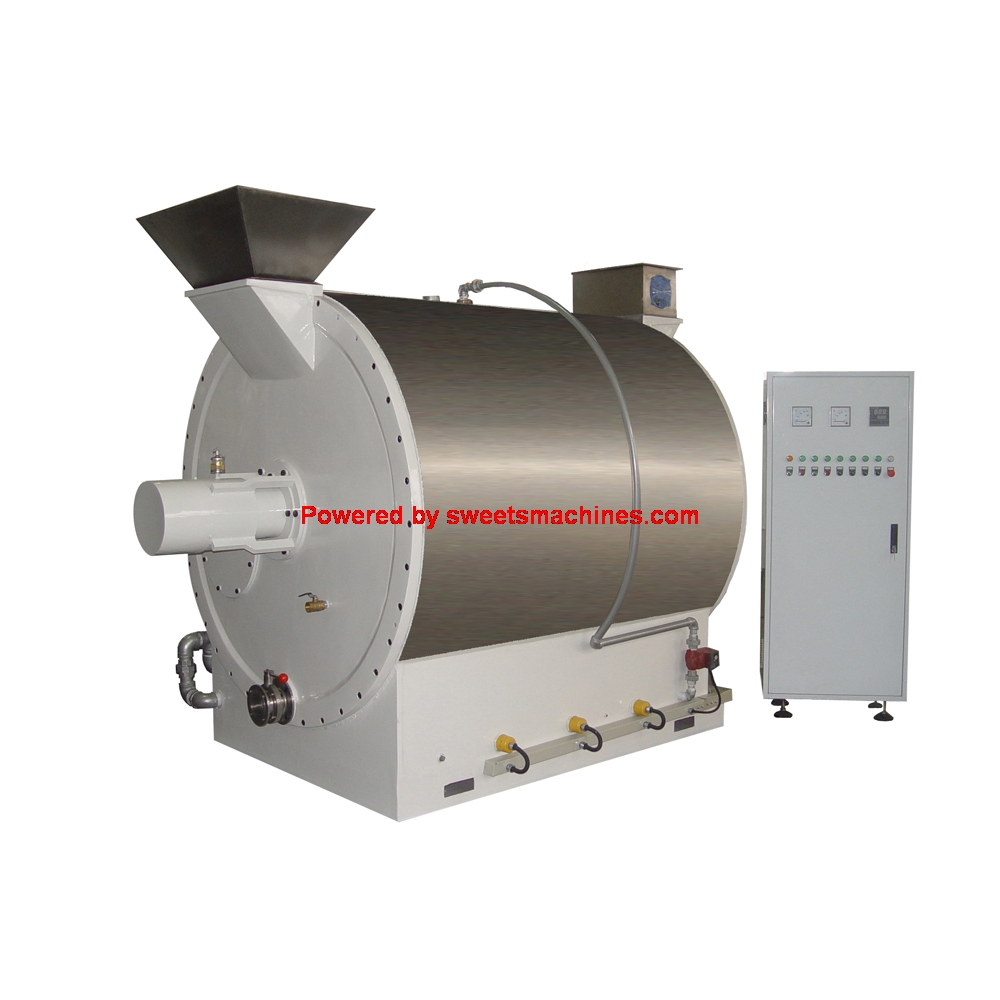

LARGE CAPACITY 3000KG CHOCOLATE CONCHE
  • LARGE CAPACITY 3000KG CHOCOLATE CONCHE

LARGE CAPACITY 3000KG CHOCOLATE CONCHE

This kind chocolate conche is our biggest capacity, which is suitable for big chocolate factories.
Detailed description

Chocolate conching machine is the main machine in chocolate production and can be used for conching and refining chocolate mass.

We have five models can be chosen: 40L, 500L, 1000L, 2000L and 3000L.

Except our 40L craft chocolate conche refiner, the pressure between lining bars and scrapers are all adjusted by small motor.

After conching and refining, the fineness of chocolate paste could reach 20~25um.


Model Production Volume(L) Processing Time(h) Fineness(um) Main Drive Power(kw Heating Powder(kw) Weight(kg) Dimension(mm)
JMJ40 40 8-10 20-25 2.2 2 360 1100×800×1100
JMJ500A 500 12-18 20-25 15 7.5 2800 2500×1080×1370
JMJ1000A 1000 14-20 20-25 22 7.5 3500 2780×1330×1800
JMJ2000C 2000 18-22 20-25 37 9 5300 3320×2000×1950
JMJ3000C 3000 18-22 20-25 55 9 8500 4200×2000×1950
