AUTOMATIC WEIGHING AND DISSOLVING SYSTEM

Detailed description

Specification

Model	SWM-AFD-11	SWM-AFD-12
Production capacity	600-750kg/h	1200-1500kg/h
Steam consumption	100kg/h	200kg/h
Steam pressure	P﹤0.6Mpa	P﹤0.6Mpa
Compressed air consumption	0.4m³/min	0.5m³/min
Weighing tank	280L	280L
Dissolving tank	320L	320+320L
Power	14.7kw	17.7kw
Sizes of machine	2100×1400×3060mm	2100×1800×3060mm
Weight of machine	1000kg	1300kg

Application

The Automatic Weighing and Dissolving System can dose seven liquid materials (6 valves for liquid and 1 for water) and dry confectionery ingredients, then mix them into a homogeneous slurry.

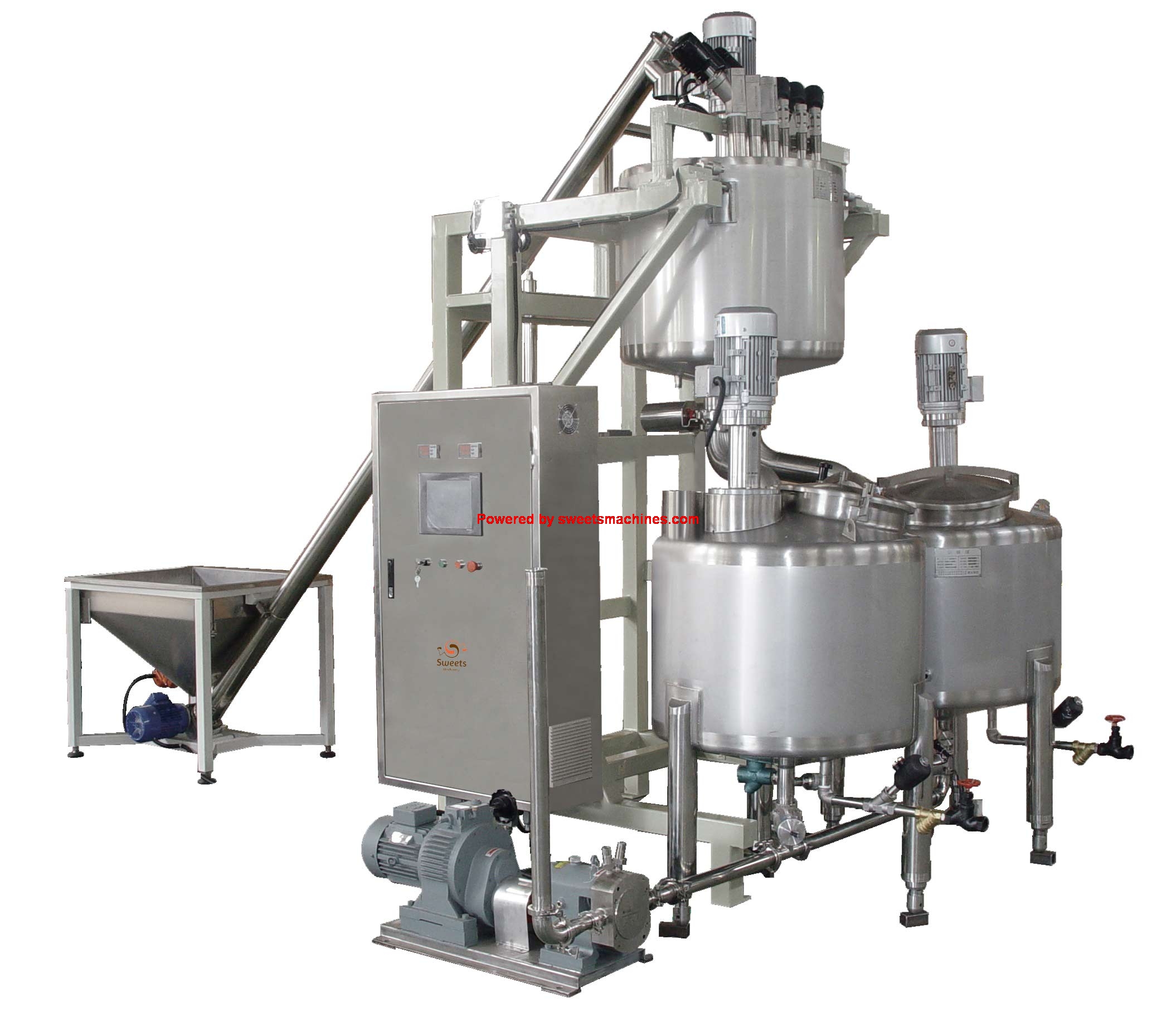

The system includes one screw sugar feeder, one weighing tank, one or two dissolving tank(s) and slurry transfer pump.

Coil dissolving tank or double-stirrer dissolving tank can be chosen.

There is a PLC and a touch screen to control the whole system. Different recipes can be stored in the PLC.

Normally the system is used in front of all cookers of confectionery.
